Air Cooler

Our experience in the design and fabrication management of air-cooled heat exchangers dates back to before the year 2000.
Since then, we have designed over 570 air cooler bundles of various types for oil, gas, and petrochemical projects.
We have no limitations in designing either plate-type or cover-type exchangers,
nor in using the common types of finned tubes employed in this industry.
We are proud to have a highly experienced team with full proficiency in applying the API 661 standard.

• Thermal, Mechanical & Structural design
• Material take off
• Cost estimation
• Preparation of specification sheet

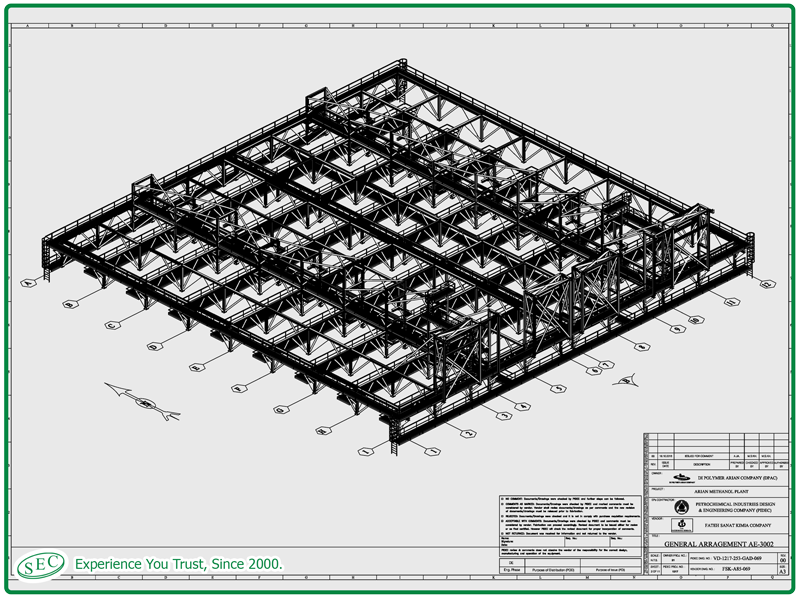

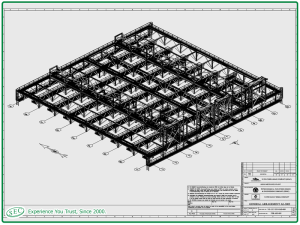

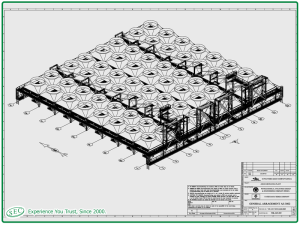

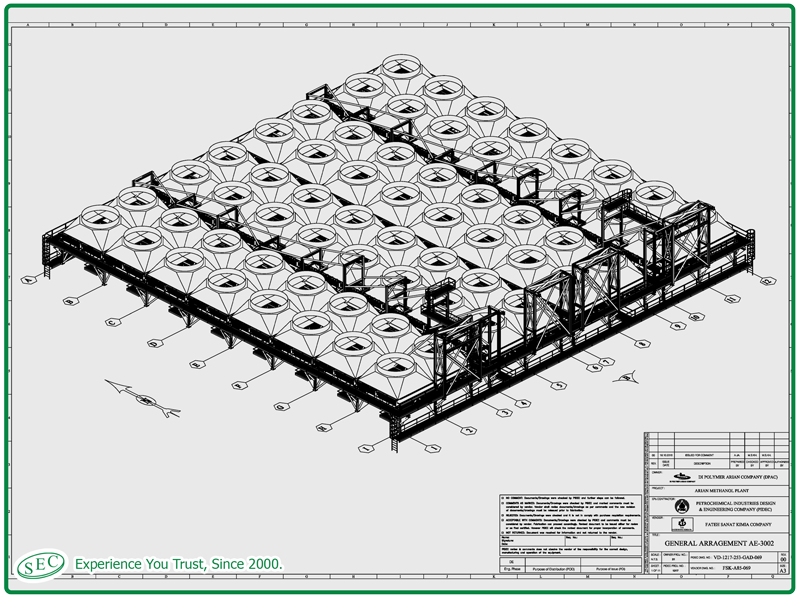

• Preparation of fabrication drawings
• Procurement
• Planning & expediting

  For any kinds of Air Cooled heat exchangers based on API-661, ASTM, ASME.

• Forced & Induced draft
• Plug & cover type headers
• Extruded, Embedded, Knurled L warp on Fin tubes
• Louver & Steam coil
• Shared & Split units
• “V”, “Toothed belt (HTD)” and Gear Box drives system
• Design Pressure up to 250 barg
• Design Temperature up to 400 °C
